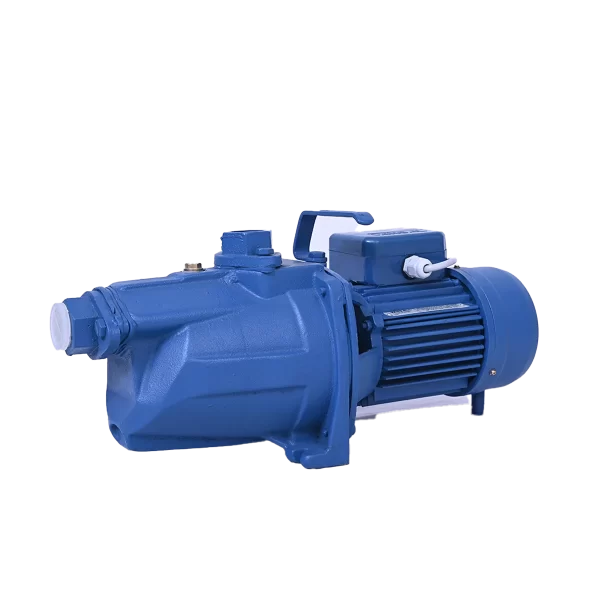

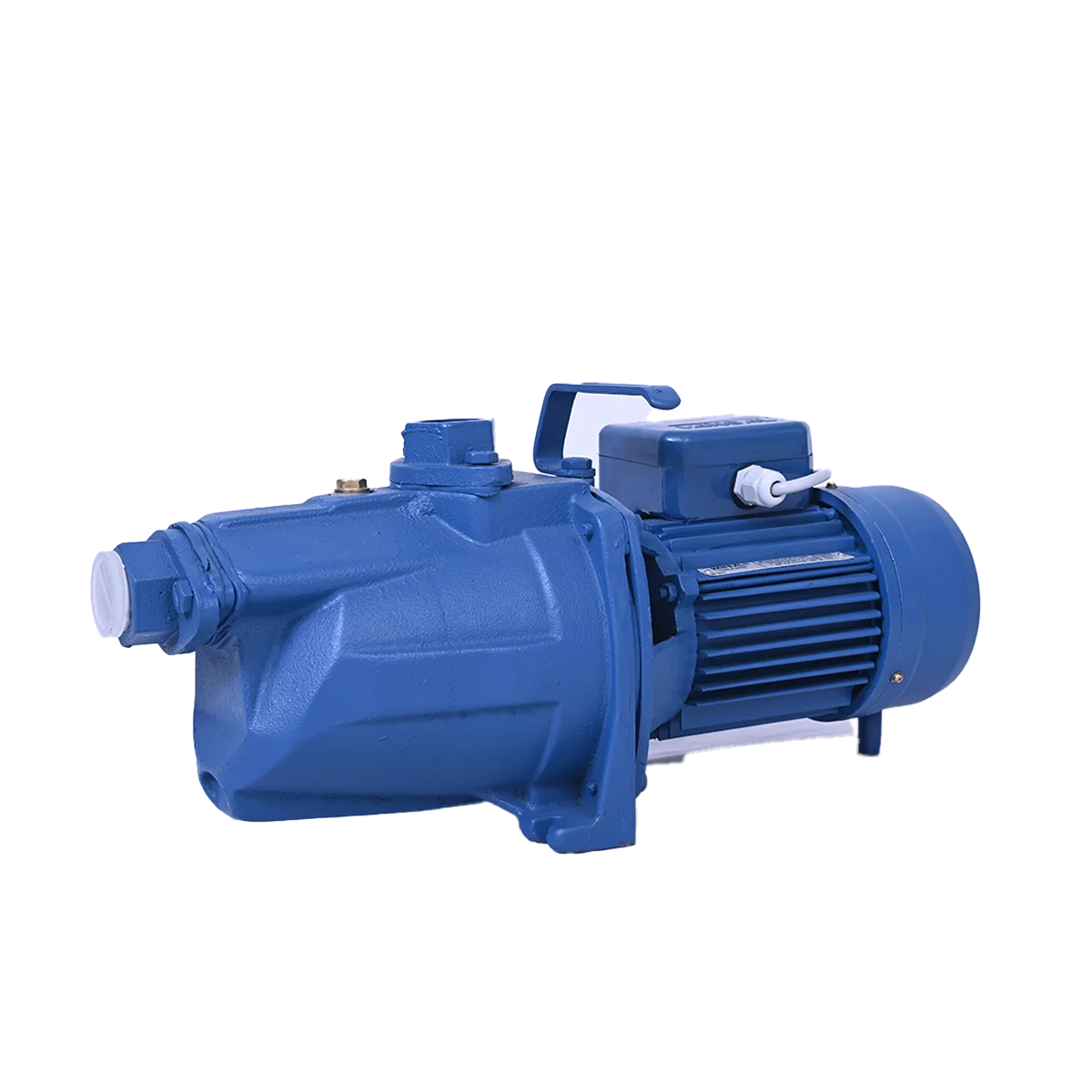

Centrifugal Self Priming Pump
- 9M Suction.
- Maintenance free (this is a centrifugal pump with a noryl impeller) self priming.
- action being achieved by an ejector housed in the pump body, hence there is no question of impeller wearing & same suction & flow is maintained throughout its life.
- High flow rate.
- Extremely fast self priming action.
- Can stand wide voltage fluctuations (170-250v).
Description
Salient Features:
- 9M Suction.
- Maintenance free (this is a centrifugal pump with a noryl impeller) self priming.
- action being achieved by an ejector housed in the pump body, hence there is no question of impeller wearing & same suction & flow is maintained throughout its life.
- High flow rate.
- Extremely fast self priming action.
- Can stand wide voltage fluctuations (170-250v).
Construction Details:
- Pressure die cast motor body.
- Fitted with imported T.O.P.
- Hardened stainless steel shaft.
- Double sealed ball bearing lubricated for life.
- Special grade noryl pump parts.
- Pipe Size : 25mm X 25mm
Can Withstand Wide Voltage Fluctuation (170v-270v)
POWER 220V, 50HZ |
FLOW (L/MIN.) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
0.8 HP | HEAD (M) | 35 | 32 | 27 | 24 | 21 | 19 | 17 | 16 | 15 | 14 | 13 |
1.3 HP | 47 | 42 | 38 | 34 | 31 | 29 | 26 | 24 | 22 | 21 | 19 |
